Civic FL5 HKS Intercooler

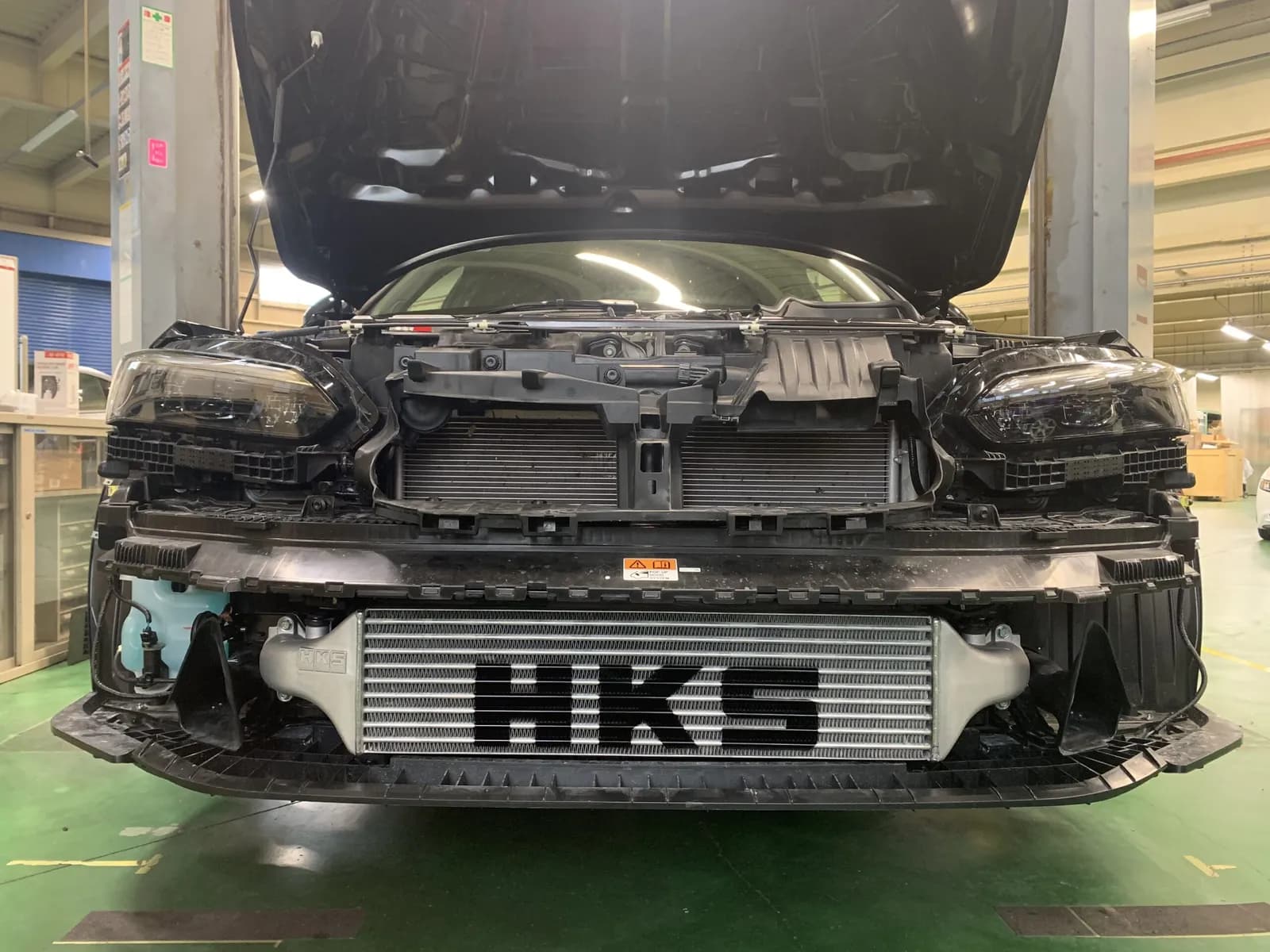

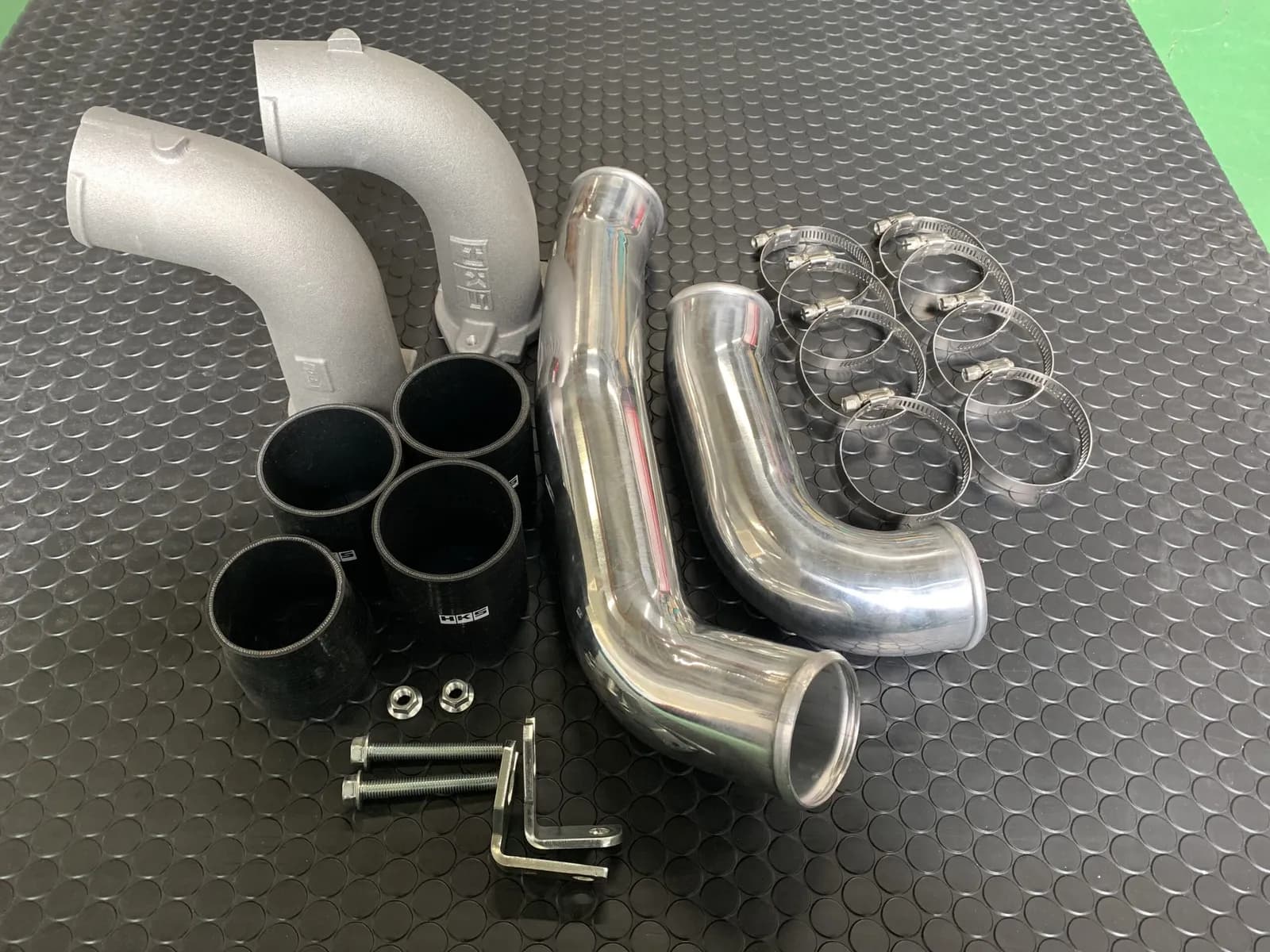

Civic FL5 HKS Intercooler CIVIC TYPE R FL5 Code No. 13001-AH008 R TYPE INTERCOOLER KIT for CIVIC TYPE-R FL5 ■Features Intercooler Core - A huge 22.4% increase in core’s area leads to immense improvement in cooling. - The OEM core does not provide sufficient cooling capacity when boosting up, with increased core capacity it will be compatible with everything from boosting up to turbo upgrade. - The core is designed to be also installed with OEM piping ■Configuration [Core Only] - Intercooler core - Masking sheet for logo spray 【パイピングキット】 - Aluminum bent pipe (IN/OUT) - Cast pipe (IN/OUT) - Silicone hose - Hose band - Bracket (IN/OUT) - Special bolts and nuts ■Important Notes *1. To install the intercooler ASSY, it is necessary to modify the air guide inside the bumper and relocate the outside air temperature sensor. No modification of the reinforcement is required. *2. To install the piping, it is necessary to shave the bracket on the vehicle body. *3. For the FULL KIT, *1 and *2 must be met. ■Core Size Comparison HKS · Stock Exterior Material & Specs · Core Size: 695 x 178 x 100 Core specs: 10 fins, 9 Tubes Tank: Aluminum cast · Core Size: 639 x 158 x 64 Core specs: 11 fins, 10 Tubes Tank: Resin Performance Data · Power: 245[kW](333[PS]/6500[rpm] Torque: 449.5[Ｎ・m] (45.9[kg・m]）/3260[rpm] Cooling performance: I/C outlet 30.3℃ (7000[rpm]) Cooling efficiency: 88%(7000[rpm]) · Power: 243[kW](331[PS]/6420[rpm] Torque: 445.8[Ｎ・m] (45.5[kg・m]）/3360[rpm] Cooling performance: I/C出口56.0℃ (7000[rpm]) Cooling efficiency: 67%(7000[rpm]) ■Performance Comparison For info on Civic FL5 HKS Intercooler please go here For info on our full range of goods and services please go here
