TODA Racing sports camshafts for the Suzuki Swift Sport

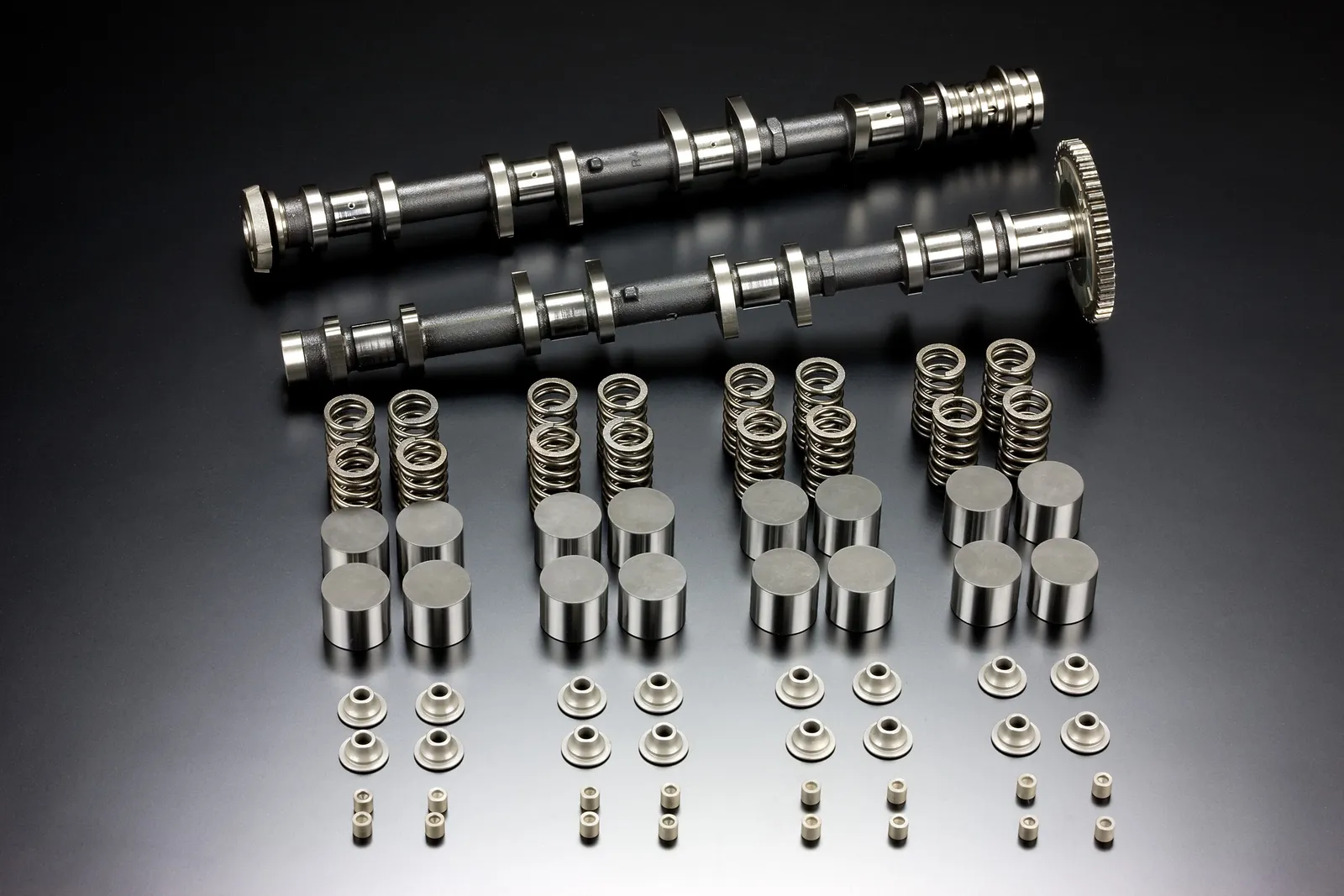

Leading Japanese tuning house TODA Racing is pleased to announce an assortment of high quality tuning components for the popular 123bhp Suzuki Swift Sport. The first release is a range of reprofiled camshafts specifically designed to increase power and torque from the 1586cc M16A engine.
From the factory the Swift Sport’s M16A motor uses a shim and bucket valvetrain actuation set up, which TODA Racing has modified to allow the standard camshafts’ base circle to be reduced from 37 to 34mm. This requires the use of the TODA inner shim kit to ensure the correct factory valve clearances are maintained.
In doing so, TODA’s technicians have been able to increase the duration and lift of the original camshafts to create a range of four performance inlet profiles and three performance exhaust profiles, with the option of an adjustable exhaust vernier cam sprocket.
Technical details of the TODA Racing Suzuki Swift M16A cams are as follows:-
TODA Inlet cam part no: Inlet duration Inlet lift
14111-M16-001 246° 9.5mm
14111-M16-011 250° 9.7mm
14111-M16-021 256° 9.7mm
14111-M16-031 264° 9.7mm
For comparison:
OEM
SUZUKI SWIFT SPORT INLET 240° 8.5mm
TODA Exhaust cam part no: Exhaust duration Exhaust lift
14121-M16-001 242° 8.9mm
14121-M16-G01 242° 8.9mm
14121-M16-011 245° 9.1mm
14121-M16-G11 245° 9.1mm
14121-M16-021 256° 9.1mm
14121-M16-G21 256° 9.1mm
‘G’ denotes adjustable exhaust cam sprocket option.
For comparison:
OEM
SUZUKI SWIFT SPORT EXHAUST 232° 8.1mm
Developed, tested and proven to the high quality levels expected by TODA Racing’s technicians, the new Suzuki Swift Sport cams* and Inner Shim kit are available now from TODA Europe (a division of TDi-plc) priced at £1762.50 including VAT @ 17.5%.
*Standard Suzuki Swift Sport camshafts are required in exchange.
The full range of Toda Racing products for the Suzuki Swift can be see here Toda Racing UK
